Smart Charging Station
Time:2022-05-23 15:32
Hits:223 次


Detailed description

Hawker AGV Safe series of lead-acid battery charger is a high-frequency switching power supply as the core, the main power converter using high-frequency high-permeability nanocrystalline transformers, microcomputer control of intelligent automatic charger.

High-tech applications, improve the efficiency of the whole conversion. Products with high efficiency, energy saving significant features, compared to traditional charger energy saving 20% -30%.

This series of microcomputer computer built-in a variety of battery charging program, accurate simulation of different types of battery charging curve. Choose a different charging program, can AGM, colloid, semi-colloidal and rich liquid water and other lead-acid batteries to charge.

The charging system consists of the charger and the charged battery to form a binary closed loop circuit. The dU / dt and dI / dt techniques are used to dynamically track the battery to accept the current. The microcomputer automatically determines the parameters of the on-line charging program according to the status of the battery, controls the output current and voltage Charging time, the charging current from the beginning to the end of the battery in the vicinity of the acceptable charge current curve, so that the battery almost no gas precipitation conditions. Not only save electricity, to achieve rapid charging, but also no damage to the battery to extend battery life. Current output is the pulse current mode, improve the battery charging capacity, reduce the concentration of polarization, electrochemical polarization, reduce gas generation. This is a very important way to reduce the battery temperature rise, reduce the battery plate deformation, reduce the gas flushing plate, reduce the active material off.

This series of charger with anti-battery reverse, the output short circuit, the output overload protection. Also has the function of automatic switch machine, can be connected to long-term input power. Need to charge, connect the battery pack, the charger work; no charge, disconnect the battery pack, the charger to stop working, the operation is very simple, user-friendly.

Hawker AGV Safe intelligent automatic lead-acid battery charger is a high reliability, high stability of the new energy-saving lead-acid battery charger.

Specifications Model

Product model

Charging mode

Charging voltage / current

Battery capacity

Outline size

Net weight

Input power

Cell voltage

Ah

W*H*L(mm)

Kg


TP4-24

 Three stage constant current

24V/4A

20-40

195*150*340

7

1Ф220VAC

TP8-24

 Three stage constant current

24V/8A

45-70

195*150*340

7

1Ф220VAC

TP15-24

 Three stage constant current

24V/13A

60-100

195*150*340

7

1Ф220VAC

TP20-24

 Three stage constant current

24V/20A

100-150

195*150*340

7

1Ф220VAC

TP25-24

 Three stage constant current

24V/25A

150-210

195*150*340

7

1Ф220VAC

TP30-24

 Three stage constant current

24V/30A

180-250

195*150*340

8

1Ф220VAC

TP35-24

 Three stage constant current

24V/35A

240-320

200*160*360

9

1Ф220VAC


TP15-48

 Three stage constant current

48V/13A

60-100

195*150*340

7

1Ф220VAC

TP20-48

 Three stage constant current

48V/20A

100-150

195*150*340

8

1Ф220VAC

TP25-48

 Three stage constant current

48V/25A

150-210

195*150*340

9

1Ф220VAC

TP30-48

 Three stage constant current

48V/30A

180-250

200*160*360

9

1Ф220VAC

TP40-48

 Three stage constant current

48V/40A

240-320

200*160*360

10

1Ф220VAC

TP50-48

 Three stage constant current

48V/50A

360-420

265*180*420

15

1Ф220VAC


TP15-72

 Three stage constant current

72V/13A

60-100

195*150*340

8

1Ф220VAC

TP20-72

 Three stage constant current

72V/20A

100-150

195*150*340

9

1Ф220VAC

TP25-72

 Three stage constant current

72V/25A

150-210

200*160*360

10

1Ф220VAC

TP30-72

 Three stage constant current

72V/30A

180-250

200*160*360

12

1Ф220VAC


TP15-96

 Three stage constant current

96V/13A

60-100

195*150*340

8

1Ф220VAC

TP20-96

 Three stage constant current

96V/20A

100-150

200*160*360

10

1Ф220VAC

TP25-96

 Three stage constant current

96V/25A

150-210

265*180*420

15

1Ф220VAC

Protection characteristics

Overheating protection: when the internal temperature of the charger is over 75 degrees, the charger can be shutdown and the temperature will drop automatically to recharge the battery.

• short-circuit protection: when the charger output unexpected short circuit, the charger automatically shut down the output, after troubleshooting, delayed 10 seconds, restart charging.

Overheating protection: when the internal temperature of the charger is over 75 degrees, the charger can be shutdown and the temperature will drop automatically to recharge the battery.

• short-circuit protection: when the charger output unexpected short circuit, the charger automatically shut down the output, after troubleshooting, delayed 10 seconds, restart charging.

Technical index

Rated input voltage: AC220V + 15%

• rated frequency: 45~65 Hz

Battery voltage: 24V/48V/72V/96V and so on

The full load efficiency: 93%

• maximum charging current: 4, 8,13,20,25A, etc.

The average charge and floating charge: automatically

Battery type: AGM, colloid, semi colloid and water rich water injection battery (charging program has been set at the factory. If you have to make a choice again, you need to do it under the guidance of a professional

Shutdown mode: automatic, or timer, or disconnect the charging plug, automatic shutdown

Cooling mode: forced air cooling

Display mode: LED digital meter, with LED light indication charging state

Mechanical shock and seismic rating: comply with SAEJ1378 requirements

Protection level: IP46

Operating temperature: -5 DEG C to +45 DEG C

Storage temperature: -30 DEG C to +70 DEG C

Charging control: temperature compensation control, never overcharge, lack of charge

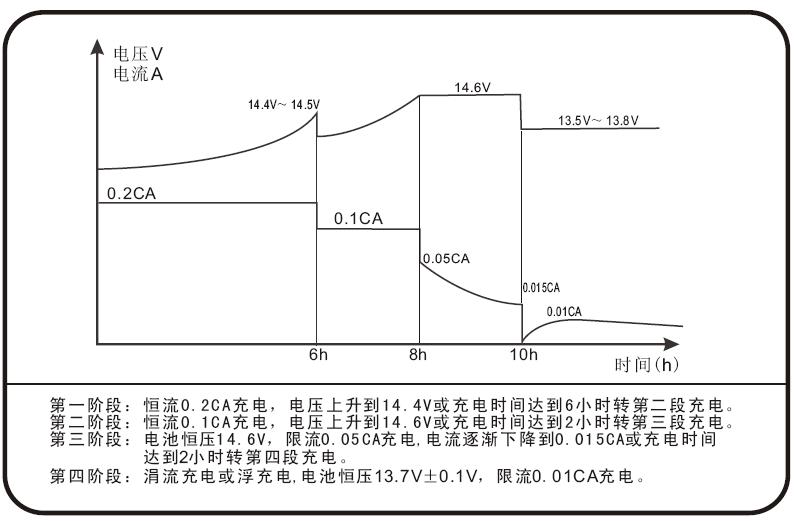

Battery charging curve


Indicator light display

Red light - charging in progress.

The yellow light - the lights, the battery into floating state. When the yellow light is on, the capacity of the battery has reached 90%. After 2 hours, it reaches more than 96%. After 5 hours, it reaches more than 99%.

Light green - charging program complete. Battery capacity is more than 100%.

Display

Check the button in the panel: A - U - charge current, battery voltage, H charging time, charging C ah, E power. Button to see the parameters, the display automatically restores the charging current after 5 seconds.
